Description
DX30 Grade
For steel, difficult to machine stainless steel, gray and nodular cast iron at medium up to high cutting speed. Excellent wear resistance.

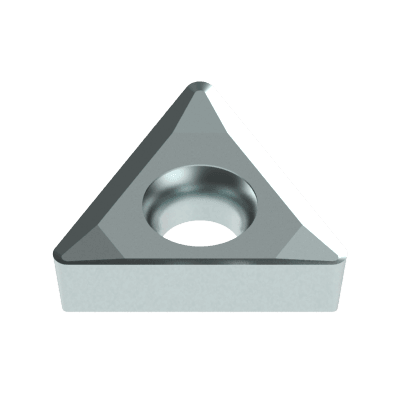

TCGT 16T302 FN-250 DX30
$22.05 ea.
Denitool TCGT 32.50.5 sized positive carbide turning insert with a sharp cutting edge and maximum depth of cut (DOC) of 0.275” (7 mm). The TCGT 16T302 FN-250 DX30 insert has a carbide substrate. It is PVD coated with our DX30 grade. It’s the best choice to cut in stainless steel. It’s the best choice to cut non-ferrous materials. Minimum order quantity: 10 pcs.
Out of stock
Additional information
| Weight | 0.0132 lbs |
|---|---|
| Dimensions | 4.6 × 2 × 0.5 in |
| ANSI SIZE | |
| SUBSTRATE | |
| Grade | |
| COATING | PVD |
| CBMD | A25S |
| LBB | 0.000” (0.00 mm) |
| AN | 7.0° |
| RE | 0.008” (0.20 mm) |
| REN | 0.000” (0.00 mm) |
| LE | 0.650” (16.50 mm) |
| L | 0.649” (16.49 mm) |
| APMX | 0.276” (7.00 mm) |
| D1 | 0.173” (4.40 mm) |
| HAND | |
| IC | 0.375” (9.52 mm) |
| EPSR | 60.0° |
| IIC | TC1102 |
| GAN | 25.0° |
| S (insert thickness) | 0.156” (3.97 mm) |
| Capability | M1 – Stainless Steel (Rm < 800 MPa), M2 – Stainless Steel – austenitic – martensitic (Rm 500-1100 MPa), N1 – Copper Alloys (Rm 450-650 MPa), N2 – Aluminum and Magnesium Alloys (Si < 12.2%), N3 – Aluminum Alloys (Si > 12.2%), N4 – Nylon – Plastics – Rubbers – Phenolics – Resins – Fibreglass, N5 – Carbon – Graphite Composites – CFRP |
