Description
DX2 Grade
Micrograin grade for machining of cast iron, plastics, and aluminum. Stainless steel at lower cutting speed.

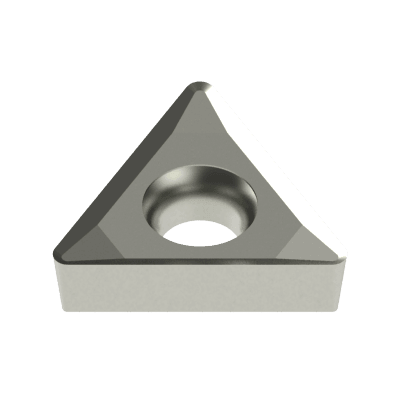

TCGT 16T308 FN-250 DX2
$17.02 ea.
Denitool TCGT 32.52 sized positive carbide turning insert with a sharp cutting edge and maximum depth of cut (DOC) of 0.275” (7 mm). The TCGT 16T308 FN-250 DX2 insert has a carbide substrate. It is uncoated. It’s the best choice to cut non-ferrous materials. Minimum order quantity: 10 pcs.
Out of stock
Additional information
| Weight | 0.0132 lbs |
|---|---|
| Dimensions | 4.6 × 2 × 0.5 in |
| ANSI SIZE | |
| SUBSTRATE | |
| Grade | |
| COATING | uncoated |
| CBMD | A25S |

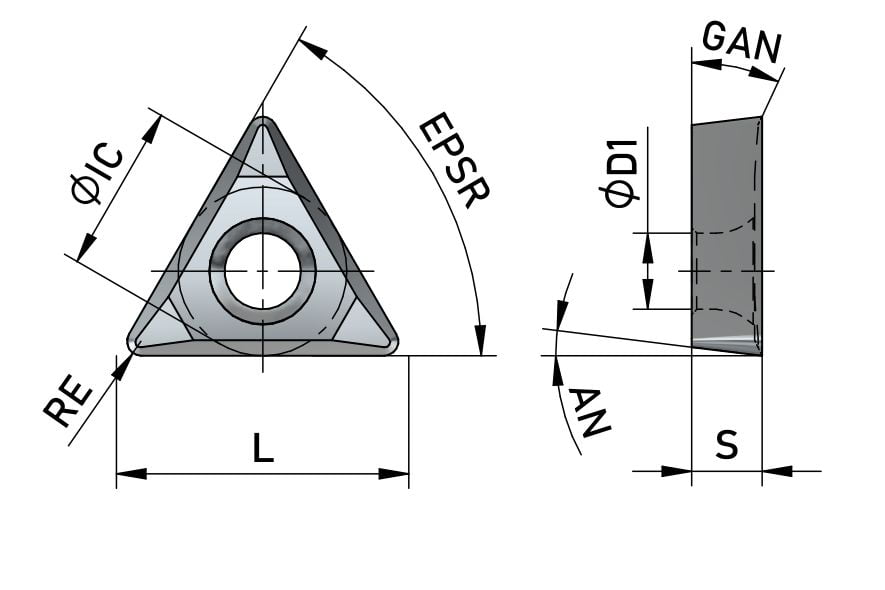

| LBB | 0.000” (0.00 mm) |
| AN | 7.0° |
| RE | 0.031” (0.80 mm) |
| REN | 0.000” (0.00 mm) |
| LE | 0.650” (16.50 mm) |
| L | 0.649” (16.49 mm) |
| APMX | 0.276” (7.00 mm) |
| D1 | 0.173” (4.40 mm) |
| HAND | |
| IC | 0.375” (9.52 mm) |
| EPSR | 60.0° |
| IIC | TC1102 |
| GAN | 25.0° |
| S (insert thickness) | 0.156” (3.97 mm) |
| Capability | N1 – Copper Alloys (Rm 450-650 MPa), N2 – Aluminum and Magnesium Alloys (Si < 12.2%), N4 – Nylon – Plastics – Rubbers – Phenolics – Resins – Fibreglass, N5 – Carbon – Graphite Composites – CFRP |
