$1,122.71 ea.

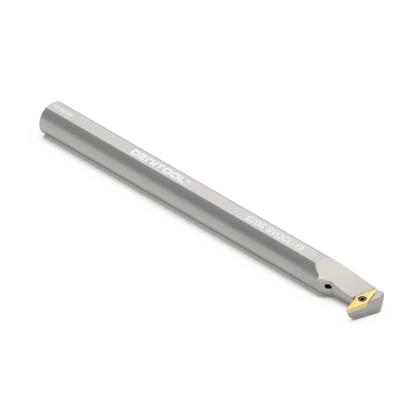

This carbide boring bar with metric dimensions has a shank diameter of 0.787” (20.00 mm) and a functional length of 9.843” (250.00 mm). It has a cooling channel. The tool cutting edge angle is 95.0° and the maximum boring depth at the minimum bore diameter of 1.063” (27.00 mm) is 4.724” (120.00 mm).
In stock
| Weight | 2.1297 lbs |
|---|---|
| Dimensions | 10.472 × 0.787 × 0.787 in |
| BMC | |
| CLMBD | |
| CNSC | |
| DCON | |
| DMIN | |
| GAMF | 5.0° |
| GAMP | 0.0° |
| H | 0.748” (19.00 mm) |
| HAND | |
| IIC | VC1303 |
| KAPR | |
| LDRED | |
| LF | |
| OAL | 10.472” (266.00 mm) |
| PSIR | -5.0° |
| TSYC | SVQC |
| UST | metric |
| WF | |
| WF2 | 0.354” (9.00 mm) |
