$287.17 ea.
Due to their optimized geometry, these milling tools have excellent properties during countersink operations. Thanks to vibration-free operation and a soft cut, subsequent deburring operations are no longer necessary.

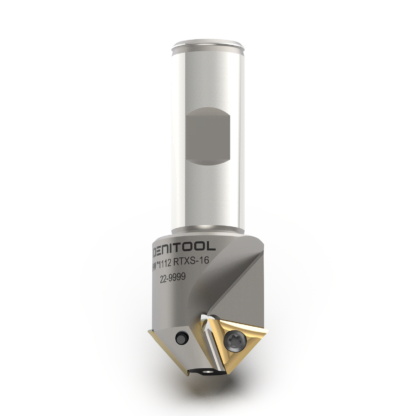

With CounterSink T, you have the best tool for your countersinking operations. High-precision inserts are crucial for a uniformly cut surface. That’s why Denitool developed sleek and precise TPHT inserts for countersink operations.
Countersinking operations have their own manufacturing requirements. That is why TPHT inserts are also designed for recurring diameters and also work well without coolant.
Out of stock
| Weight | 0.4321 lbs |
|---|---|
| Dimensions | 3.484 × 1.311 × 1.311 in |
| APMX | 0.413” (10.50 mm) |
| BD | 1.142” (29.00 mm) |
| CCMS | |
| CDX | |
| CICT | 2 |
| CNSC | |
| CUB | inch |
| DC | 0.488” (12.40 mm) |
| DCCB | 0.000” (0.00 mm) |
| DCIN | 0.000” (0.00 mm) |
| DCON | |
| DCX | 1.205” (30.60 mm) |
| DHUB | 1.150” (29.20 mm) |
| DMM | 0.750” (19.05 mm) |
| DN | 1.150” (29.20 mm) |
| IIC | TP16T3 |
| KAPR | |
| LCCB | 0.000” (0.00 mm) |
| LF | |
| LH | 1.378” (35.00 mm) |
| LPR | 1.378” (35.00 mm) |
| LS | 2.031” (51.59 mm) |
| LU | 1.378” (35.00 mm) |
| OAL | 3.409” (86.59 mm) |
