E06M” STUPR-11

$441.24 ea.

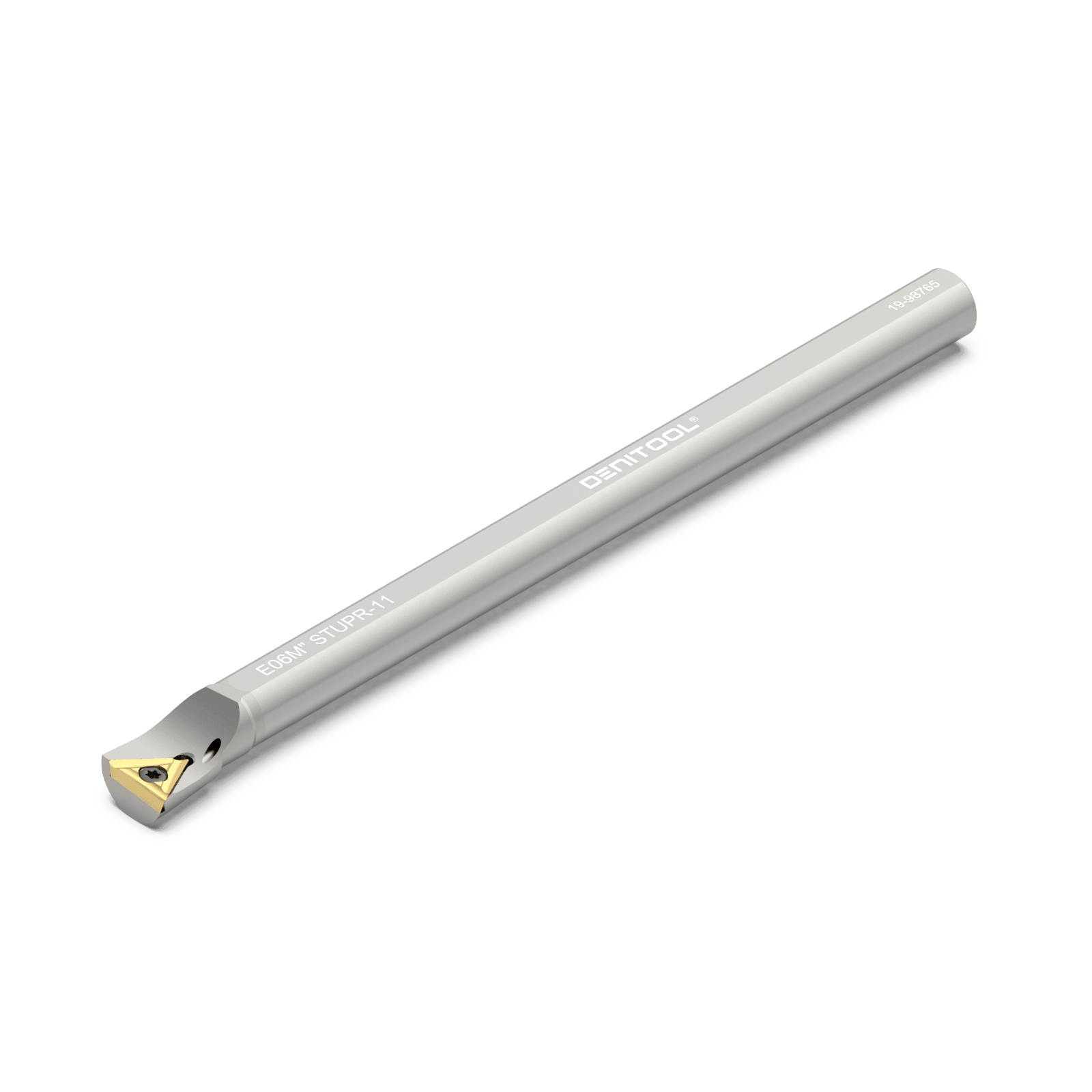

This carbide boring bar with inch dimensions has a shank diameter of 0.375” (9.53 mm) and a functional length of 5.906” (150.00 mm). It has a cooling channel. The tool cutting edge angle is 93.0° and the maximum boring depth at the minimum bore diameter of 0.512” (13.00 mm) is 2.250” (57.15 mm).

In stock

SKU: E06M"STUPR-11 Category: Tag:

Additional information

Weight0.2724 lbs
Dimensions5.906 × 0.375 × 0.375 in
BMC

CLMBD

CNSC

DCON

DMIN

GAMF

5.0°

GAMP

-5.0°

H

0.336” (8.53 mm)

HAND

IIC

TP1102

KAPR

LDRED

LF

OAL

5.906” (150.00 mm)

PSIR

-3.0°

TSYC

STUP

UST

inch

WF

WF2

0.016” (0.40 mm)
