Name: CPGT 05T101 FN DX52
SKU: CPGT 05T101 FN DX52
Price: 23.37 USD
Availability: InStock

CPGT 05T101 FN DX52

$23.37 ea.

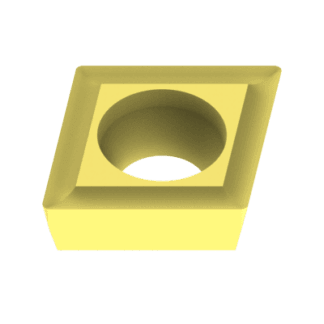

Denitool CPGT 1.81.20.2 sized positive carbide turning insert with a sharp cutting edge and maximum depth of cut (DOC) of 0.1” (2.5 mm). The CPGT 05T101 FN DX52 insert has a carbide substrate. It is PVD+PLC coated with our DX52 grade. It’s well suited to cut in steel. It’s the best choice to cut in stainless steel. It’s well suited to cut non-ferrous materials. It’s the best choice to cut super alloys. It’s also the first choice to use, before considering other inserts. Minimum order quantity: 10 pcs.

In stock

SKU: CPGT 05T101 FN DX52 Category: CPGT 05T1.. FN Tag: CP05T1

Description

DX52 Grade

Similar to DX 50 but with additional PLC-antifriction film against the cold-welding tendency. High thermal stability.

Additional information

Weight	0.0022 lbs
Dimensions	3.5 × 1.5 × 0.4 in
FirstChoiceToolItem	first choice
ANSI SIZE	CPGT 1.81.20.2
SUBSTRATE	Carbide
Grade	DX52
COATING	PVD+PLC
CBMD	B10M
LBB	0.031” (0.80 mm)
AN	11.0°
RE	0.004” (0.10 mm)
REN	0.004” (0.10 mm)
LE	0.220” (5.60 mm)
L	0.222” (5.65 mm)
APMX	0.098” (2.50 mm)
D1	0.098” (2.50 mm)
HAND	neutral
IC	0.219” (5.56 mm)
EPSR	80.0°
IIC	CP05T1
GAN	10.0°
S (insert thickness)	0.078” (1.97 mm)
Capability	P1 – Low Carbon Steel (Rm < 500 MPa – Hardness 0.25%), P2 – Alloy Steel (Rm 500-700 MPa – Hardness 140-200 HB – C-Content > 0.25%), P3 – Tool Steel (Rm 900-1100 MPa – Hardness 170-275 HB – C-Content > 0.25%), P4 – Alloy Tool Steel (Rm 700-900 MPa), P5 – Alloy Cast Steel (Rm 800-1500 MPa), M1 – Stainless Steel (Rm < 800 MPa), M2 – Stainless Steel – austenitic – martensitic (Rm 500-1100 MPa), N1 – Copper Alloys (Rm 450-650 MPa), N4 – Nylon – Plastics – Rubbers – Phenolics – Resins – Fibreglass, N5 – Carbon – Graphite Composites – CFRP, S1 – Iron-Based – Heat-Resistant Alloys (Rm 500-1200 MPa – Hardness 160-260 HB / 25-48 HRC), S2 – Cobalt-Based – Heat-Resistant Alloys (Rm 1000-1450 MPa – Hardness 250-450 HB / 25-48 HRC), S3 – Nickel-Based – Heat-Resistant Alloys (Rm 600-1700 MPa – Hardness 160-450 HB / < 48 HRC), S4 – Titanium and Titanium-based Alloys (Rm 900-1600 MPa – Hardness 300-400 HB / 33-48 HRC)
